| 연동펌프 튜빙, 핏팅 [Peristaltic Pump Tubing & Fitting] |
|
| Silicon Peristaltic Pump Tubing PharMed BPT Peristaltic Pump Tubing Norprene Chemical Peristaltic Pump Tubing Tygon R-3603 Peristaltic Pump Tubing Tygon F-4040 Peristaltic Pump Tubing Viton Peristaltic Pump Tubing Fluran F-5500 Peristaltic Pump Tubing Peristaltic Pump Tubing Peristaltic Pump Fitting |
카탈로그
2019-2020+English_peri-oem_dbht200527.vol1.egg
10.00MB
2019-2020+English_peri-oem_dbht200527.vol2.egg
10.00MB
2019-2020+English_peri-oem_dbht200527.vol3.egg
10.00MB
2019-2020+English_peri-oem_dbht200527.vol4.egg
0.12MB
특징
| Silicon Peristaltic Pump Tubing | |
| Designed for high-purity applications, Longerpump Silicone Tubing's ultra-smooth inner bore can reduce the risk of particle entrapment and microscopic buildup during sensitive fluid transfer. Platinum-cured peristaltic pump silicone tubing: Ultra-smooth inner liner with extremely low leachables, good flexibility, translucent and wide temperature range of -60 to 238 ℃ In-house analysis of the inner surface of Sanitary Silicone Tubing compared to other silicone tubing shows that it is up to three times smoother. Additionally, this smoother fluid path facilitates complete system cleaning and sterilization. Utilizing a platinum-curing process, Longerpump Sanitary Silicone Tubing eliminates the concern of extraction often encountered when alternative curing methods are used. It reduces user cost and time associated with process validation. Ultra-smooth inner bore reduces potential for particle entrapment Minimal extractables help maintain fluid integrity Hydrophobic surface improves fluid flow Documented biocompatibility to the ISO 10993 standard Meets USP Class VI, FDA and NSF criteria. |
 |
| PharMed BPT Peristaltic Pump Tubing | |
| PharMed? BPT Tubing is less permeable to gases and vapors than silicone tubing. It is ideal for cell culture, fermentation, synthesis, separation, purification and process monitoring and control. It Independent tests show that PharMed? 65 Tubing is safe for use in sensitive cell culture applications. PharMed? BPT Tubing has very good general chemical resistance and excellent acid, alkali and oxidation resistance. Opaque to visible and UV light, it helps protect sensitive fluids. Continuous service temperature range is -60°F (-51°C) to 275°F (135°C). Outlasts silicone tubing in peristaltic pumps by up to 30 times Can be autoclaved repeatedly Heat weldable for sterile access in closed systems Documented biocompatibility to the ISO 10993 Standard Meets USP Class VI, FDA and NSF criteria |
 |
| Norprene Chemical Peristaltic Pump Tubing | |
| Norprene? Chemical Tubing is a high performance co-extruded product specifically formulated to provide an ideal combination of chemical resistance and pump life. Its inert ultra-smooth plasticizer-free bore resists the absorption/ adsorption of aqueous fluids while the Norprene? outer jacket provides long flex life in peristaltic pumps. Norprene? Chemical Tubing is an excellent choice for sensitive fluid transfer applications. Long flex life in peristaltic pumps Temperature range of -75° F to 165° F Superior chemical resistance Plasticizer-free bore Meets FDA criteria for food contact Resists absorption adsorption of aqueous fluids Virtually unaffected by chemical sanitizers and cleaners Complies with FDA 21 CFR, 177.1520 criteria and is applicable for food contact applications Unaffected by most commercial sanitizers and cleaners Can be autoclaved for up to five cycle times without affecting its overall service life |
 |
| Tygon R-3603 Peristaltic Pump Tubing | |
| Tygon? Vacuum Tubing has extra-heavy walls that will withstand a full vacuum at room temperature (29.9" [759 mm] of mercury at 73°F [23°C]) and up to 27" [686 mm] of mercury at 140°F [60°C]. Like standard Tygon? Laboratory Tubing, Tygon? Vacuum Tubing resists most inorganic chemicals and can be used in corrosive atmospheres. Clarity allows monitoring for possible backups which could result in equipment damage. Tygon? Vacuum Tubing will not swell closed if vacuum pump oil should back up into it. Low vapor pressure (low outgassing) makes it suitable for vacuum applications down to 3 x 10-2 mm Hg at 165°F (74°C). Ideal for analytical testing of gases or vapors. Well-suited for use in making manometers. Holds full vacuum at room temperature Will not crack and age like rubber tubing Excellent clarity for visual inspection |
 |
| Tygon F-4040 Peristaltic Pump Tubing | |
| A consistent performer lot after lot, Tygon? Fuel and Lubricant Tubing is the most requested fuel and lubricant tubing for a variety of applications -- from small engine fuel lines to coolant transfer. Specifically designed to handle most fuels and industrial lubricants, Tygon? Fuel and Lubricant Tubing resists the swelling and hardening caused by hydrocarbon-based fluids. This significantly reduces the risk of failure due to cracking and leakage. Its minimum extractability safeguards the liquid or vapor being transferred against adulteration. Extremely flexible (Shore A, 57), Tygon? Fuel and Lubricant Tubing simplifies installation, even in tight places. It is translucent yellow for positive identification and to allow easy flow monitoring. It is routinely used to handle gasoline, kerosene, heating oils, cutting compounds and glycol-based coolants. Resists embrittlement Compatible with most petroleum-based products Resists swelling and cracking Ozone and UV light resistant |
 |
| Fluran F-5500 Peristaltic Pump Tubing | |
| Made of a proprietary fluoroelastomer, Fluran? Severe Environment Tubing has both the physical and chemical characteristics that make it ideal for severe environments, such as dry cleaning fluid lines and solvent recovery systems, where other flexible tubings fail. Fluran? Severe Environment Tubing can be used in continuous service with temperatures as high as 400°F (204°C) and has excellent resistance to corrosive chemicals, oils, fuels, solvents and most mineral acids. This opaque, black tubing helps protect light-sensitive materials being transferred and will not prematurely crack and age when exposed to ozone, sun and weather. It is highly flexible and resilient, making it the ideal choice in peristaltic pumping of extremely corrosive materials. A food grade formulation is available upon request. Provides continuous service at temperatures up to 400°F (204°C) Excellent resistance to corrosive chemicals, oils, fuels and solvents Resists ozone, sunlight and weathering Opaque black color helps protect light sensitive fluids |
 |
| Viton Peristaltic Pump Tubing | |
| Made of a proprietary fluoroelastomer, Fluran? Severe Environment Tubing has both the physical and chemical characteristics that make it ideal for severe environments, such as dry cleaning fluid lines and solvent recovery systems, where other flexible tubings fail. Fluran? Severe Environment Tubing can be used in continuous service with temperatures as high as 400°F (204°C) and has excellent resistance to corrosive chemicals, oils, fuels, solvents and most mineral acids. This opaque, black tubing helps protect light-sensitive materials being transferred and will not prematurely crack and age when exposed to ozone, sun and weather. It is highly flexible and resilient, making it the ideal choice in peristaltic pumping of extremely corrosive materials. A food grade formulation is available upon request. Provides continuous service at temperatures up to 400°F (204°C) Excellent resistance to corrosive chemicals, oils, fuels and solvents Resists ozone, sunlight and weathering Opaque black color helps protect light sensitive fluids |
 |
규격

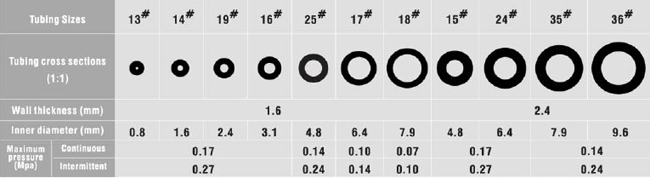

Peristaltic Pump Tubing
| Tubing No. | Inner Diameter (mm) | Wall Thickness (mm) | Pump head | Package |
| 13# | 0.8 | 1.6 | YZ1515x, YZⅡ15, TH15 | 15 meters |
| 14# | 1.6 | |||
| 19# | 2.4 | |||
| 16# | 3.1 | |||
| 25# | 4.8 | YZ1515x, YZⅡ15, DG15-24, TH15 | ||
| 17# | 6.4 | YZ1515x, YZⅡ15, DG15-24 | ||
| 18# | 7.9 | YZ1515x, YZⅡ15 | ||
| 15# | 4.8 | 2.4 | YZ2515x, YZⅡ25, KZ25 | |
| 24# | 6.4 | YZ2515x, YZⅡ25, KZ25, BZ25 | ||
| 35# | 7.9 | KZ25, YZⅡ25 | ||
| 36# | 9.6 | |||
| 73# | 9.5 | 3.2 | KZ35, YZ35, YZ35-13 | |
| 82# | 12.7 | |||
| 88# | 12.7 | 4.8 | KZ48/63 | |
| 92# | 25.4 | |||
| 0.5*0.8 | 0.5 | 0.8 | DG, JY10, WX10, DG15-28(48) | 15 meters |
| 2.4*0.8 | 2.4 | |||
| 1*1 | 1 | 1.0 | ||
| 2*1 | 2 | |||
| 3*1 | 3 | |||
| 1*1sss | 1 | 12 Pieces | ||
| 2*1sss | 2 | |||
| 2.4*0.8sss | 2.4 | 0.8 |
| Peristaltic Pump Fitting | |
| Barbs molded without parting line 100% Virgin Materials 100% Quality Inspection Application Range: 125 PSI, w/o clamps Standard, Reducing, & Enlarging Leak resistant "Sharp Barb" design Materials; Nylon, Polypropylene, Natural Kyna,r Polycarbonate |
 |
| Tubing Fitting | Tubing ID(inch) | Tubing ID(mm) | Tubing Wall (1.6 mmT) | Tubing Wall (2.4 mmT) | Tubing Wall (>3.2 mmT) |
Straight Connector |
1/16" | 1.6 | 13# 14# | - | - |
| 1/8" | 3.2 | 16# | - | - | |
| 3/16" | 4.8 | 25# | 15# | ||
| 1/4" | 6.4 | 17# | 24# | ||
| 3/8" | 9.6 | 18# | 35# 36# | 73# | |
| 1/2" | 12.7 | - | - | 82# 88# | |
| 3/4" | 19.1 | - | - | 90# | |
| 1" | 25.4 | - | - | 92# | |
'Y' Connector |
1/16" | 1.6 | 13# 14# | - | - |
| 1/8" | 3.2 | 16# | - | - | |
| 3/16" | 4.8 | 25# | 15# | ||
| 1/4" | 6.4 | 17# | 24# | ||
| 3/8" | 9.6 | 18# | 35# 36# | 73# | |
| 1/2" | 12.7 | - | - | 82# 88# | |

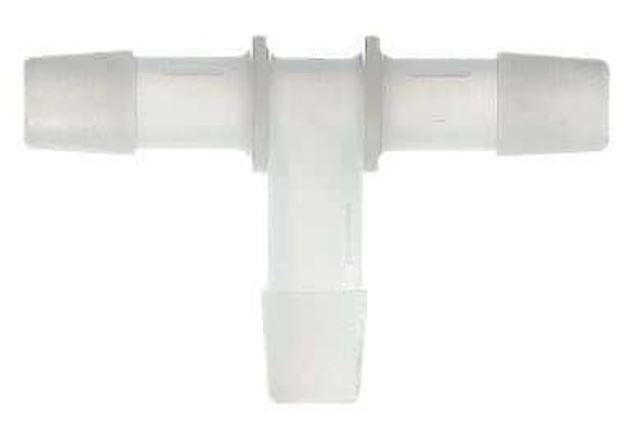

'T' Connector |
3/4" | 19.1 | - | - | 90# |
| 1" | 25.4 | - | - | 92# | |
Reducing Connector |
1/16" - 1/8" | 1.6 - 3.2 | 13#14# - 16# | - | - |
| 1/8" - 3/16" | 3.2 - 4.8 | 16# - 25# | - | - | |
| 1/8" - 1/4" | 3.2 - 6.4 | 16# - 17# | - | - | |
| 1/4" - 3/8" | 6.4 - 9.6 | 17# /18# | 24# - 35#36# | - | |
| 3/8" - 1/2" | 9.6 - 12.7 | - | - | 73#86# - 82#88# | |
| 1/2" - 3/4" | 12.7 - 19.1 | - | - | 82#88# - 90# | |
| 1/2"-1" | 12.7 - 25.4 | - | - | 82#88# - 92# | |
Male Threded Connector |
1/8" - 1/8"PT | 3.2 | 16# | ||
| 3/16" - 1/8"PT | 4.8 | 25# | 15# | ||
| 1/4" - 1/4"PT | 6.4 | 17# | 24# | ||
| 3/8" - 1/4"PT | 9.6 | 18# | 35#36# | 73# | |
| 1/2" - 1/2"PT | 12.7 | 82#88# | |||
| 5/8" - 1/2"PT | 15.9 | 89# | |||
| 3/4" - 1/2"PT | 19.1 | 90# |
