TL-B10
소형 마그네틱 원심펌프
|
|
|
TL-B10 Brushless DC Cetrifurgal Pump
7/9/12 Liter/min
3/5/8 Meter
12/24 VDC
|
카탈로그
개요
- TOPSFLO TL-B 시리즈는 브러쉬리스 모터에 의해 구동되는 마이크로 원심펌프이다.
- 소음진동이 낮으며 소형 경량으로 설계되었다.
- 누수를 방지하도록 씰이 없는 구조로 되어 있어서 안정된 성능과 긴 수명을 제공한다.
- 식품용 재질과 고온내구성 등 다양한 특징을 가지고 있다.
특징
Features:
- Advanced magnetic driving technology for static-seal, without any leakage forever
- Motor widely voltage designed suitable for battery power supplying with peak-low voltage damply
- Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance
- Heavy duty work, can sustain continuous 24 hours work
- Special designed high efficiency closed-type impeller
- Sustain 100°C hot water circulation
- All wetted materials FDA approved to be safety usage
- Low or no maintenance
- Blocked protection
- Polarity protection
Application:
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
- Liquid transfer general purpose pumping
- Water heating mattress
- Hot water circulating system
- Electronics Cooling Water Circulation Chiller Systems
- Liquid filling and transfer in food, beverage processing, vending machines
- Circulating systems for homes, RV's and boats
- Cleaning equipment, purification and water treatment
- Fountain, aquariums and small fish ponds,, heaters
- Automotive air conditioning
- Computer CPU cooling circulation
Usage Note:
- Reverse polarity is not allowed (except customized).
- The pump if dropped or with heavy vibration do not use.
- Liquid contain impurities or magnetic particles are not allowed.
- Liquid temperature over 80°C is not allowed (except high temperature models).
- Acidic or alkaline liquid is prohibited (except customized).
규격
|
|
TL-B10-A
|
TL-B10-B
|
TL-B10-C
|
|
|
 |
 |
 |
|
Max Flow Rate
|
7L/min, 9L/MIN, 12L/MIN
|
7L/MIN, 9L/MIN, 12L/MIN
|
7L/MIN, 9L/MIN, 12L/MIN
|
|
Max Static Lift
|
3M, 5M, 8M
|
3M, 5M, 8M
|
3M, 5M, 8M
|
|
Rated Voltage
|
12V / 24V
|
12V / 24V
|
12V / 24V
|
|
Impeller Type
|
Closed impeller
|
Closed impeller
|
Closed impeller
|
|
Motor Type
|
brushless DC motor
|
brushless DC motor
|
brushless DC motor
|
|
Liquid Temperature
|
0-100°C
|
0-100°C
|
0-100°C
|
|
Pump Theory
|
Centrifugal pump
|
Centrifugal pump
|
Centrifugal pump
|
|
Ambient Temperature
|
-10-50°C
|
-10-50°C
|
-10-50°C
|
|
Media
|
Pure Water
|
Pure Water
|
Pure Water
|
|
Waterproof Class
|
IP65, submersible IP68 can be customized
|
IP65, submersible IP68 can be customized
|
IP65, submersible IP68 can be customized
|
|
Use Place
|
Indoor Outdoor
|
Indoor Outdoor
|
Indoor Outdoor
|
|
Working Voltage Range
|
6~18V or 12~28V
|
6~18V or 12~28V
|
6~18V or 12~28V
|
|
Power Consumption
|
7~32W
|
7~32W
|
15~31.2W
|
|
Noise Class form 1M
|
40dB /Max
|
40dB /Max
|
40dB /Max
|
|
Ideal Life Time
|
20000 Hours
|
20000 Hours
|
20000 Hours
|
|
Working Mode
|
Continuous
|
Continuous
|
Continuous
|
|
OD of Inlet
|
18 mm
|
thread nozzles: G1/2
|
14.7 mm
|
|
OD of Outlet
|
10.8 mm
|
thread nozzles: G1/2
|
9 mm
|
|
Dimension
|
81.9x46.3x61.36 mm
|
82.6x45.5x99 mm
|
85.5X45.5X62.41 mm
|
|
Power Supply
|
DC power supply, battery, solar powered
|
||
|
Protection Functions
|
overload protection
|
||
|
Remarks
|
Can’t dry-running, not Self-priming
|
||
주문정보
|
Model Number
|
Rated Voltage
(Volt)
|
Voltage Range
(Volt)
|
Flow Rate
(L/Min)
|
Static Lift
(Meter)
|
Media Temp.
(°C)
|
Rated Current
(Amp)
|
Rated Power
(Watt)
|
Food Grade
|
|
TL-B10H-A12-0703
|
12
|
6-18
|
7
|
3
|
100
|
0.54
|
7
|
Y
|
|
TL-B10H-A12-0905
|
12
|
6-18
|
9
|
5
|
100
|
1.38
|
16.8
|
Y
|
|
TL-B10H-A24-0703
|
24
|
12-28
|
7
|
3
|
100
|
0.35
|
10
|
Y
|
|
TL-B10H-A24-0905
|
24
|
12-28
|
9
|
5
|
100
|
0.65
|
15
|
Y
|
|
TL-B10H-A24-1208
|
24
|
12-28
|
12
|
8
|
100
|
1.3
|
31.2
|
Y
|
|
TL-B10H-B12-0703
|
12
|
6-18
|
7
|
3
|
100
|
0.54
|
7
|
Y
|
|
TL-B10H-B12-0905
|
12
|
6-18
|
9
|
5
|
100
|
1.38
|
16.8
|
Y
|
|
TL-B10H-B24-0703
|
24
|
12-28
|
7
|
3
|
100
|
0.35
|
10
|
Y
|
|
TL-B10H-B24-0905
|
24
|
12-28
|
9
|
5
|
100
|
0.65
|
15
|
Y
|
|
TL-B10H-B24-1208
|
24
|
12-28
|
12
|
8
|
100
|
1.3
|
31.2
|
Y
|
|
TL-B10H-C12-0905
|
12
|
6-14
|
9
|
5
|
100
|
1.38
|
16.8
|
Y
|
|
TL-B10H-C24-0905
|
24
|
12-28
|
9
|
5
|
100
|
0.65
|
15
|
Y
|
|
TL-B10H-C24-1208
|
24
|
12-28
|
12
|
8
|
100
|
1.3
|
31.2
|
Y
|
Remarks: All wetted materials is food grade, FDA Certified
NOTE: Customization
1. /H High Temperature 100 °C (212 °F), not H normal type liquid ≤ 70 °C
2. /S Submersible, Liquid ≤ 50 °C
3. /PV Powered by solar panel directly
4. /FG (RPM) Signal Wire
5. /PWM or /5V Speed Control

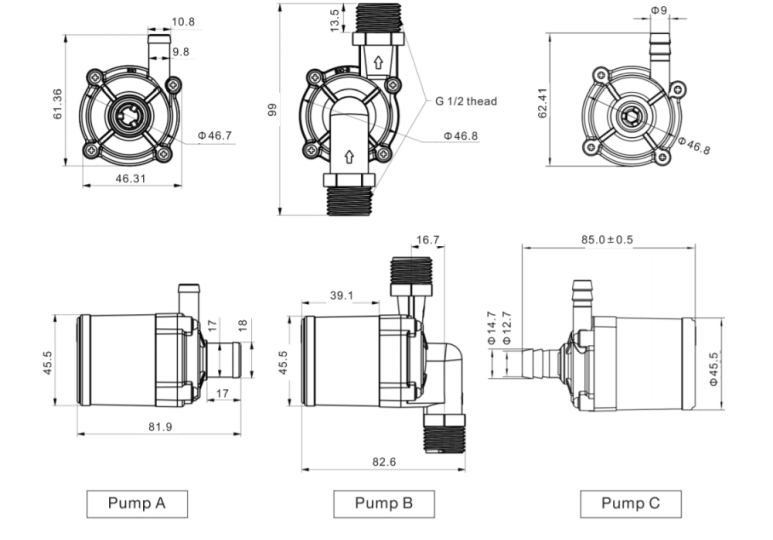

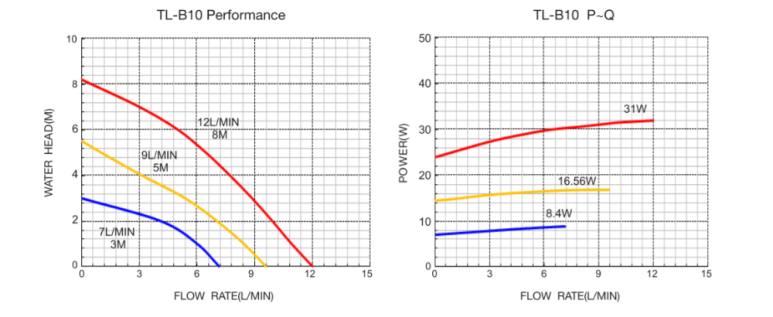

Curve & Dimension
