LONGER
|
|
|
T600 속도조절형 OEM 튜브연동펌프
[T600 Variable Speed OEM Peristaltic Pump]
스테퍼모터, BCD 스위치
회전속도 : ≤600 rpm
유량범위 : ≤2200 mL/min
펌프헤드 : YZ15, YZ25, DMD15, BZ15, BZ25, DG15,
|
||
특징
- Multi-control modes, several pump head are suitable for T100 OEM peristaltic pump.
- Ideal ODM peristaltic pump for lots of instrument.
- Soleplate or panel installation.
규격
|
Speed
|
≤600 rpm
|
|
Speed resolution
|
1 rpm
|
|
Direction control
|
External switch signal. CW when switch is open, CCW when switch is closed
|
|
Start/stop control
|
External switch signal. Pump run when switch is open, stop when switch is closed
|
|
BCD dial switch speed control
|
In low speed range; BCD position 1-F corresponding to 5,10,20,30,40,60,80,100,125,150,175,,200,225,250,275,300 rpm
In high speed range; BCD position 1-F corresponding to 320,340,360,380,400,420,460,480,500,520,540,560,580,600 rpm
|
|
External speed control
|
4~20 mA, 0~5 V, 0~10 V, 0~10 kHz
|
|
Communacation interface
|
Available for pump with RS485, Pump ID range is 1-30, 31 is broadcast address, Bit rate; 1200 or 9600 bps
|
|
Power supply
|
DC24V
|
|
Power consumption
|
80W
|
|
Operating condition
|
Temperature; 0~40℃, Relative humidity; <80%
|
|

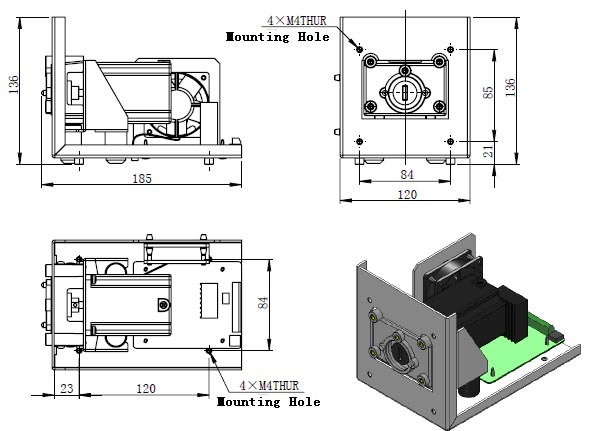

Dimensions
|
185 L x 120 W x 136 mmH
|
주문정보
|
Drive
|
Pump head
|
External control
|
Product code
|
|
T600-S300
|
Select
|
4-20 mA
|
0563100
|
|
T600-S301
|
0-5 V
|
0563101
|
|
|
T600-S302
|
0-10 V
|
0563102
|
|
|
T600-S303
|
0-10 kHz
|
0563103
|
|
|
T600-S500
|
RS-485C
|
0563200
|
|
Drive
|
Pump head
|

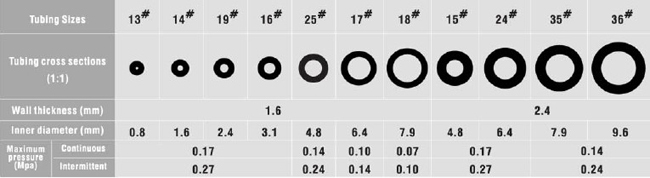

Tubing
|
Max. Flowrates (mL/min)
|
|
T600 series
|

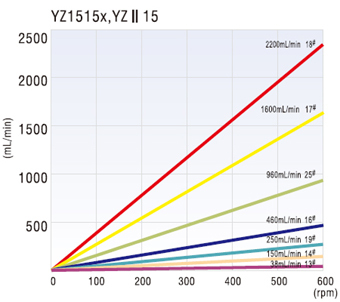

YZ-1515 YZ-II15
|
13# 14# 19# 16# 25# 17# 18#
|
2200
|
|

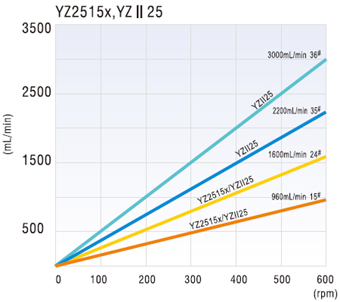

YZ-2515 YZ-II25
|
15# 24#
|
1600
|
|
|

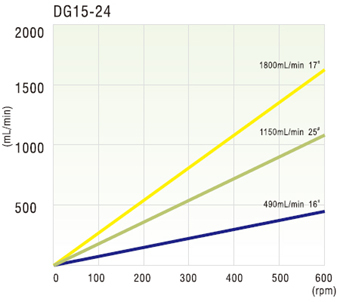

DG15-24
|
16# 25# 17
|
1800
|
|
|

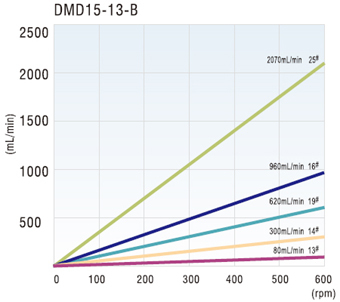

DMD15-13
|
13# 14# 19# 16# 25#
|
2070
|
귀하의 성공적인 연구개발의 동반자가 되겠습니다.
***************************************************************************************
동방하이테크상사
서울시 성동구 광나루로6길 35, 성수이비즈센터 710호
T)02-457-6292 F)457-6293 dbht@allpump.co.kr
***************************************************************************************
