[LONGER] T100/WX10 속도조절형 OEM 튜브연동펌프

​​​​​	LONGER
	T100/WX10 속도조절형 OEM 튜브연동펌프 [T100/WX10 OEM Peristaltic Pump] ​ 스테퍼모터, BCD 스위치 회전속도 : ≤100 rpm 유량범위 : ≤40 mL/min 펌프헤드 : WX10

---

특징

● WX10-14 펌프헤드, 멀티-제어 모드 채택

● 정밀 유체장비 및 기기 제작에 이상적인 OEM 튜브연동펌프

● 밑판고정형(soleplate) 또는 벽면고정형(panel installation)

---

​ T100/WX10 without Drive

​ T100/WX10 with Drive



---

규격

Speed	≤100 rpm
Speed resolution	0.1 rpm

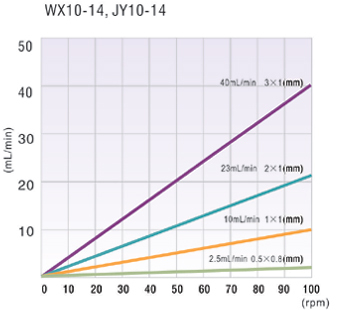

Max. flow rate	≤40 mL/min

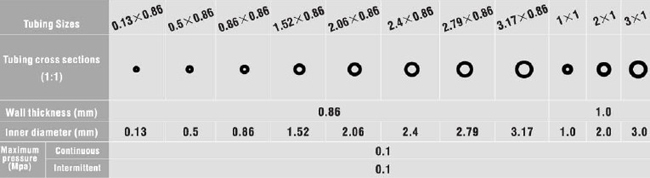

Tubing	ID≤3.17mm, wall thickness; 0.8mm-1.0mm
Direction control	External switch signal. /CW when switch is open, CCW when switch is closed
Start/stop control	External switch signal. /Pump run when switch is open, stop when switch is closed
BCD dial switch speed control	The speed is divided into 15 grades. /BCD position 1-F corresponding to 5,10,15,20,25,30,35,40,45,50,55,60,70,80,100 rpm
External speed control	4~20 mA, 0~5 V, 0~10 V, 0~10 kHz
Communacation interface	Available for pump with RS485 /Pump ID range is 1-30, 31 is broadcast address /Bit rate; 1200 or 9600 bps
Power supply	DC11.4~25.2V
Power consumption	12W
Operating condition	Temperature; 0~40℃, Relative humidity; <80%
Dimensions	106 L x 60 W x 81 mmH

Step motor specification		Step motor port
Step angle	1.8°	Line color	Definition
Phase	2	Brown	A
Phase voltage	6.56V	Orange	A
Phase current	0.8A	Red	B
Resistance	8.2Ω±10%	Yellow	B
Inductance	13.9mH±20%



---

주문정보

Drive	Pump head	External control	Product code
T100-S300	WX10-14-H	4-20 mA	05.60.01H
		0-5 V	05.60.02H
		0-10 V	05.60.03H
		0-10 kHz	05.60.04H
		RS-485C	05.60.05H

​
