[LONGER] - KZ35 튜브연동펌프 헤드

KZ35 튜브연동펌프 헤드

[KZ35 Peristaltic Pump Head]

	LONGER
	Quick-load Pump Head : KZ35-13 1-channel, ≤6,000 mL/min, ≤600 rpm

1.주문정보

KZ35 Quick-load Peristaltic Pump Head

KZ35 pump head is specially designed and produced for pharmaceutical and food industry according to GMP criteria. All the key parts are adopted 304 stainless steel and tubing holders adopt PVDF material. The surface of KZ35 is polished to make it easier to be cleaned. Sophisticated structure ensure its stable performace and easy to change tubing.

​

​

​

​

Model

Product code

Shaft

Roller number

Housing metarial

Roller metarial

Speed (rpm)

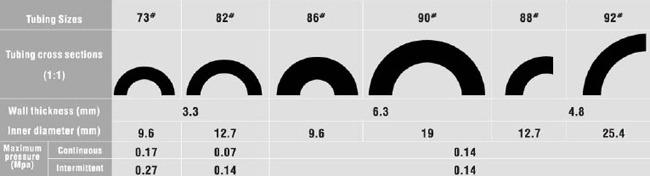

Tubing

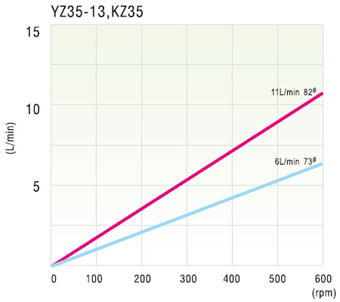

Max.Flow (mL/min)

Weight (kg)

KZ35-13-A

05.01.26A

Long

3

SS

SS

≤600

72# 82#

11,000

0.79

KZ35-13-B

05.01.26B

Short

​



---
