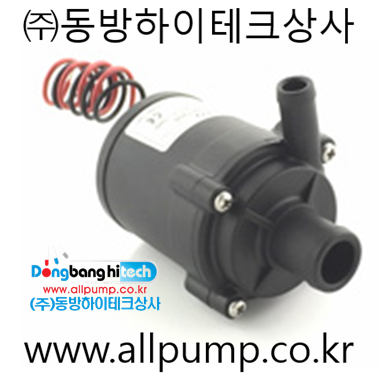

TL-B10 소형 마그네틱 원심펌프 [TL-B10 Brushless DC Cetrifurgal Pump]

포괄적 유체솔루션 TOPS Industry & Technology (TOPSFLO) 공식대리점

#정식수입 #공식인증 #TOPSFLO제휴 #TOPSFLO펌프견적 #TOPSFLO펌프문의 #펌프견적문의 #동방하이테크상사

	TL-B10 소형 마그네틱 원심펌프 [TL-B10 Brushless DC Cetrifurgal Pump]
	》 7/9/12 Liter/min 》 3/5/8 Meter 》 12/24 VDC

◈개 요

TOPSFLO TL-B 시리즈는 브러쉬리스 모터에 의해 구동되는 마이크로 원심펌프이다.

소음진동이 낮으며 소형 경량으로 설계되었다.

누수를 방지하도록 씰이 없는 구조로 되어 있어서 안정된 성능과 긴 수명을 제공한다.

식품용 재질과 고온내구성 등 다양한 특징을 가지고 있다.

◈특 징

Features: Advanced magnetic driving technology for static-seal, without any leakage forever Motor widely voltage designed suitable for battery power supplying with peak-low voltage damply Durable permanent magnetic rotor with one-off injection incorporated impeller in smooth balance Heavy duty work, can sustain continuous 24 hours work Special designed high efficiency closed-type impeller Sustain 100°C hot water circulation All wetted materials FDA approved to be safety usage Low or no maintenance Blocked protection Polarity protection

Application: The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water. Liquid transfer general purpose pumping Water heating mattress Hot water circulating system Electronics Cooling Water Circulation Chiller Systems Liquid filling and transfer in food, beverage processing, vending machines Circulating systems for homes, RV's and boats Cleaning equipment, purification and water treatment Fountain, aquariums and small fish ponds, Electric cars: radiators, heaters Automotive air conditioning Computer CPU cooling circulation

Usage Note: Reverse polarity is not allowed (except customized). The pump if dropped or with heavy vibration do not use. Liquid contain impurities or magnetic particles are not allowed. Liquid temperature over 80°C is not allowed (except high temperature models). Acidic or alkaline liquid is prohibited (except customized).

◈규 격

Model	TL-B10-A	TL-B10-B
Max Flow Rate	7L/min, 9L/MIN, 12L/MIN	7L/MIN,,9L/MIN,,12L/MIN
Max Static Lift	3M, 5M, 8M	3M, 5M, 8M
Rated Voltage	12V / 24V	12V / 24V
Impeller Type	Closed impeller	Closed impeller
Motor Type	brushless DC motor	brushless DC motor
Liquid Temperature	0-100°C	0-100°C
Pump Theory	Centrifugal pump	Centrifugal pump
Ambient Temperature	-10-50°C	-10-50°C
Media	Pure Water	Pure Water
Waterproof Class	IP42 or Submersible (optional)	IP42 or Submersible (optional)
Use Place	Indoor Outdoor	Indoor Outdoor
Working Voltage Range	6~14V or 12~26V	6~14V or 12~26V
Power Consumption	7~32W	11~19.2W
Noise Class form 1M	40dB /Max	40dB /Max
Ideal Life Time	20000 Hours	20000 Hours
Working Mode	Continuous	Continuous
OD of Inlet	18 mm	thread nozzles: G1/2
OD of Outlet	10.8 mm	thread nozzles: G1/2
Dimension	81.9x46.31x61.36 mm
Power Supply	DC power supply, battery, solar powered
Protection Functions	overload protection
Remarks	Can’t dry-running, not Self-priming

◈주문정보

Model Number	Rated Voltage  (Volt)	Voltage Range  (Volt)	Flow Rate (L/Min)	Static Lift (Meter)	Media Temp. (°C)	Rated Current (Amp)	Rated Power (Watt)	Food Grade
TL-B10H-A12-0703	12	6-14	7	3	100	0.6	7	Y
TL-B10H-A12-0905	12	6-14	9	5	100	1.4	16.8	Y
TL-B10H-B12-0703	12	6-14	7	3	100	0.6	7	Y
TL-B10H-B12-0905	12	6-14	9	5	100	1.4	16.8	Y
TL-B10H-A24-0703	24	12-26	7	3	100	0.4	10	Y
TL-B10H-A24-0905	24	12-26	9	5	100	0.6	15	Y
TL-B10H-B24-0703	24	12-26	7	3	100	0.4	10	Y
TL-B10H-B24-0905	24	12-26	9	5	100	0.6	15	Y
TL-B10-A24-1208	24	12-26	12	8	70	1.3	31.2	Y
TL-B10-B24-1208	24	12-26	12	8	70	1.3	31.2	Y

Note /F type ; food grade  /H type ; liquid≤100℃, not H normal type liquid ≤70℃   /S type can be customized, if submersible liquid should be ≤50℃   /PV type can be powered by solar panel directly.

Curve & Dimension
