T300 속도조절형 OEM 튜브연동펌프 [T300 Variable Speed OEM Peristaltic Pump]

	T600 속도조절형 OEM 튜브연동펌프 [T600 Variable Speed OEM Peristaltic Pump]
	》 스테퍼모터, BCD스위치 》 회전속도 : ≤300 rpm 》 유량범위 : ≤1200 mL/min 》 펌프헤드 : YZ15, YZ25, DMD15, DG15



• Multi-control modes, several pump head are suitable for T100 OEM peristaltic pump.

• Ideal ODM peristaltic pump for lots of instrument.

• Soleplate or panel installation.

Speed	≤300 rpm
Speed resolution	1 rpm
Direction control	External switch signal. CW when switch is open, CCW when switch is closed
Start/stop control	External switch signal. Pump run when switch is open, stop when switch is closed
BCD dial switch speed control	BCD position 1-F corresponding to 5,10,20,30,40,60,80,100,125,150,175,,200,225,250,275,300 rpm
External speed control	4~20 mA, 0~5 V, 0~10 V, 0~10 kHz
Communacation interface	Available for pump with RS485 Pump ID range is 1-30, 31 is broadcast address Bit rate; 1200 or 9600 bps
Power supply	DC24 V
Power consumption	50 W
Operating condition	Temperature; 0~40℃, Relative humidity; <80%
Dimensions	185 L x 120 W x 136 mmH

Drive	Pump head	External control	Product code
T300-S300	Select	4-20 mA	0561100
T300-S301	Select	0-5 V	0561101
T300-S302	Select	0-10 V	0561102
T300-S303	Select	0-10 kHz	0561103
T300-S500	Select	RS-485C	0561200

---

Drive	Pump head	Tubing	Max. Flowrates(mL/min)
T300 series	YZ-1515 YZ-II15	13# 14# 19# 16# 25# 17# 18#	1140
	YZ-2515 YZ-II25	15# 24#	840
	DG15-24	16# 25# 17	900
	DMD15-13	13# 14# 19# 16# 25#	1040

---

YZ1515x, YZ2515x		YZII15, YZII25
DMD15-13		DG15-24

---

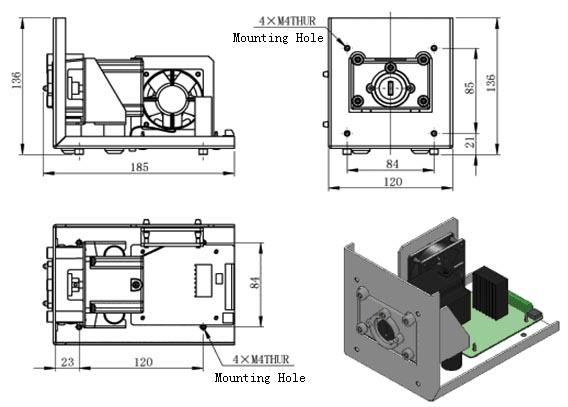

Installation Drawing

---
