T100 속도조절형 OEM 튜브연동펌프 [T100 Variable Speed OEM Peristaltic Pump]


T100 속도조절형 OEM 튜브연동펌프
[T100 Variable Speed OEM Peristaltic Pump]
스테퍼모터, BCD 스위치
 회전속도 : ≤100 rpm
 유량범위 : ≤450 mL/min
 펌프헤드 : YZ15, YZ25, DG-1, DG-2
5



  • Multi-control modes, several pump head are suitable for T100 OEM peristaltic pump.
  • Ideal ODM peristaltic pump for lots of instrument.
  • Soleplate or panel installation.





T100 with Drive T100 without Drive



Speed

≤100 rpm

Speed resolution

0.1 rpm

Direction control

External switch signal. CW when switch is open, CCW when switch is closed

Start/stop control

External switch signal. Pump run when switch is open, stop when switch is closed

BCD dial switch speed control

BCD position 1-F corresponding to 5,10,15,20,25,30,35,40,45,50,60,70,80,90,100 rpm

External speed control

4~20 mA, 0~5 V, 0~10 V, 0~10 kHz

Communacation interface

Available for pump with RS485 /Pump ID range is 1-30, 31 is broadcast address /Bit rate; 1200 or 9600 bps

Power supply

DC11.4~25.2V

Power consumption

20W

Operating condition

Temperature; 0~40℃



Relative humidity; <80%

Dimensions

183 L x 102 W x 136 mmH

Step motor specification
Step angle 1.8°
Phase 2
Phase voltage 2.1V
Phase current 1.56A
Resistance 1.4Ω±10%
Inductance 4.3mH±20%
Step motor port
Line color Definition
Red A
Green A
Yellow B
Blue B


Drive

Pump head

External control

Product code

T100-S300 Select 4-20 mA 0560100
T100-S301 0-5 V 0560101
T100-S302 0-10 V 0560102
T100-S303 0-10 kHz 0560103
T100-S500 RS-485C 0560200

Drive

Pump head

Tubing

Max. Flowrates (mL/min)

T100 series YZ-1515 YZ-II15 13# 14# 19# 16# 25# 17# 18# 380
YZ-2515 YZ-II25 15# 24# 270
DG-1,2 (6-rollers)  internal diameter : < 3.17 mm
wall thickness : 0.8-1 mm
48
DG-1,2 (10-rollers) 32

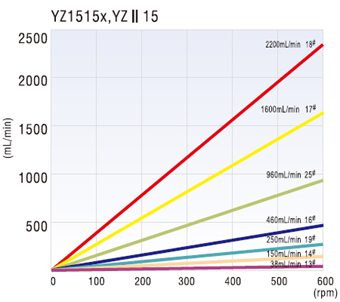

YZ1515x, YZ2515x
YZII15, YZII25

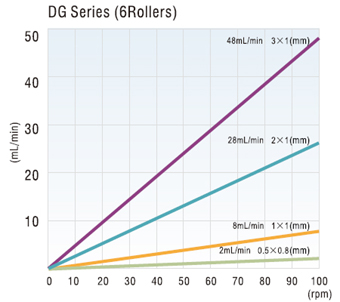

DG Series


Installation Drawing
