[LONGER] FU4B-1 튜브연동펌프 분주기, 충전 시스템

​ ​​​​​​​	LONGER
	FU4B-1 튜브연동펌프 분주기, 충전 시스템 [FU4B-1 Dispensing & Filling System] 분 주 량 : 0.1~9,999 mL 분주시간 : 0.5~6,000 sec 분주간격 : 0.5~999 sec 분주회수 : 0~999,999 cycle 펌프헤드 : YZ15, YZ25, FG15, FG25, DMD15

---

개요

• 튜브연동펌프를 사용하는 자동분주기, 충전시스템이다.

• FC32S-1 콘트롤러와  FU4B-1 분주시스템으로 구성된다.

• FU4B 분주시스템은 4-채널이 기본구조이며, 적층하여 32-채널까지 확장할 수 있다.

• FC32S-1 콘트롤러는 7 인치 터치스크린으로 간편하게 제어할 수 있다.

• 각 채널은 멤브레인 키패드와 LED 디스플레이를 별도로 가지고 있어 각 채널의 주소설정 및 분주량을 검교정할 수 있다.

• SS304 스테인리스 스틸 하우징은 높은 내식성을 제공한다.

---

FU4B-1		FK1-100Z



---

특징

• One unit has 3, 4 or 5 channels. Max. 32 channels (8 units) are available

• Control each channel separately.

• Back suction function is available.

• Avoid liquid drippage

• Each channel is separate.

• Control parts adopt inserting and drawing structure.

• Easy to maintain

• Flow rate calibration function for more accurate volume

• Realize the function of filling stop without bottles

• 128×64 graphic LCD display and friendly interface

• Computer control is available through RS485 communication..

---



규격

Dispensing volume	0.1~9,999 mL (resolution; 0.01 mL)
Dispensing time	0.5~6,000 sec (resolution; 0.01 sec)
Interval time	0.5~999.9 sec
Dispensing cycle	1~999,999 times, "0" means unlimited cycle
Delay time before back suction	0~60.0 sec
Back suction angle	0~1,000o
Channel	4-channel/unit, max.32-channel
Display	LCD
Control mode	Off-line(FC32S-1 controller), On-line(external signal or communication control)
Start/stop signal input	1 switch signal for each dispensing unit
No bottle signal input	4 switch signal corresponding to 4 cahnnels for each dispensing unit
Communacation interface	RS485 communication interface, Modbus protocol, communication parameters (address, baud rate, parity, stop bit) can be set through touch screen
Dispensing calibration	Dispensing volume of every channel can be calibtate throurg percentage, colume, wright or average weight method
Channel enable	Every channel can be set as enable or disable
Fill/backflow	All channels can be fast filling or backflowing at high speed
Channel address	Communication address of each channel can be set throughmebbrane key and display on independent LED
Password function	Protect the system parameters and prevent misoperation through the password
Dispensing parameter set	Dispensing parameters can be saved as a parameter set which can be invoked easily without reset it
Dimension	Dispensing unit (4-channel); 663 mmL x 218 mmW x 177 mmH Controller; 228 mmL x 60 mmW x 146 mmH
Power supply	Dispensing unit (4-channel); AC220V±20%/300 Watt Controller; AC 90-260V/10 Watt
Weight	Dispensing unit (4-channel); 12.13 kg Controller; 1.69 kg
IP rating	IP31



---

주문정보

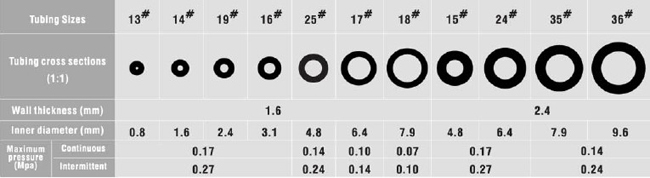

Drive	Pump head	Tubing	Dispensing ID(mm)	Dispensing volume(mL)	Dispensing time(sec)	Precision	Productivity (pcs/min)
FU4B-1 Dispensing unit (05.11.12A) ​ FC32S-1 Controller (05.49.27A)	YZ-1515 YZII25 FG15-13	13#	≤0.5	0.3-0.5	1-1.2	≤2%	27-30
		14#	≤1.0	1.0-2.3
		19#	≤1.5	2.6-5.1
		16#	≤2.0	4.6-9.1
		25#	≤3.0	10-19
		17#	≤3.0	15-30
		15#	≤3.0	8.0-17
		24#	≤3.0	12-24
		35#	≤3.0	18-36
		36#	≤3.0	25-48
	DMD15-28	13#	≤0.5	0.1-0.9
		14#	≤1.0	0.2-2.3
		19#	≤2.0	0.5-5.9
		16#	≤3.0	2.0-10
		25#	≤3.0	5.0-25





YZ1515x, YZ2515x





YZII15, YZII25

​





FG15-13

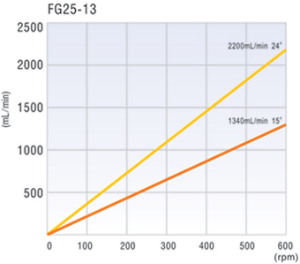

FG25-13

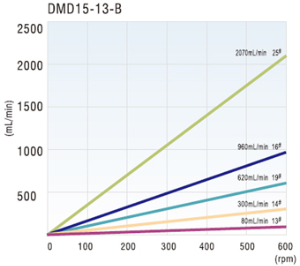

DMD15-13
