[LONGER] BT100-1F 분주형 튜브연동식 정밀 정량펌프

​​ ​ ​​​​​​​	LONGER
	BT100-1F 분주형 튜브연동식 정밀 정량펌프 [BT100-1F Dispensing Peristaltic Tubing Pump] LCD 디스플레이와 멤브레인 키패드 및 회전식 엔코더스위치, IP31 회전속도 : 0.1~100 rpm (0.1 rpm), 역회전 유량범위 : 0.02~380 mL/min 펌프헤드 : YZ15, YZ25, DG15, DG(최대 4 채널)

---

개요

• BT100-1F 분주형 튜브연동식 정밀 정량펌프는 YZ1515X, YZ2515X, YZII15, YZII25, DG-1,2,4 헤드를 장착할 수 있다.
• 0.2 uL/min ~ 500 mL/min 범위에서 유량조절이 가능하며, 정밀하게 0.01-9900 mL의 분주량을 설정할 수 있다.
• 대형 128x32 그래픽 LCD 디스플레이를 통해 간편하게 파리미터를 설정할 수 있으며, 작동 메뉴를 관찰할 수 있다.
• 유량과 회전속도 및 분주량을 동시에 같은 화면에 디스플레이할 수 있다.
• 유량 검량기능을 가지고 있어서 더욱 정밀한 유량제어가 가능하다
• 표준 외부제어 인터페이스나 RS-485 통신 인터페이스를 통해 간편하게 원격제어할 수 있다.



---

특징

• Suitable for laboratory, analytical instrument, industry.
• Dispensing peristaltic pump BT100-1F has LCD, which could display the parameters and running state. The pump could run continuously at desired flow rate and speed, and also could complete the dispensing function at desired dispensing volume, dispensing time and batch cycles. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The pump offers flow rate from 0.0002 mL/min to 500mL/min. And the dispensing volume is from 0.01mL to 9990mL. The pump could be controlled through control panel, external control interface and RS485 communication interface.
• Applicable pump heads: YZ1515X, YZII15, YZ2515X, YZII25, DG-1/DG-2
• Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
• Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
• Back suction function: 0s - 99.9min, resolution is 0.1s
• Operating mode: Membrane keypad and rotary encoded switch
• Speed control: The speed can be adjusted manually or automatically through external control interface
• Prime key: For fast filling and emptying at full speed
• Power-off memory: Return to previous state when power on
• Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
• Communication function: the pump could be controlled by computer through RS485 communication interface.



---

규격

Speed	0.1~100 rpm, CW/CCW
Speed resolution	0.1 rpm
Control mode	Control panel, external signal control and cmmunication control available
Display	LCD for running status
Dispensing volume	0.01 mL ~ 9.99 Liter
Copy number	0 to 9999, 0 means unlimited cycle.
Pause time	0.1 sec ~ 99.9 min, resolution; 0.1 sec
Back suction time	0~99.9 sec, resolution; 0.1 sec
Dispensing caibration	Improve accuracy
External control	Start/stop, cw/ccw control
Direction and speed control	4-20mA, 0-5V, 0-10V, 0-10kHz corresponding to 0.1-100 rpm
Speed output	0-10KHz corresponding to 0.1~100.0 rpm
Start/Stop output	OC gate signal
Direction output	OC gate signal
Communacation interface	RS485
Power-off memory	Return to previous state when power on
Prime	For fast filling and emptying at full speed
Power supply	AC90-260V/50-60 Hz
Power consumption	≤40W
Operating condition	Temperature; 0~40℃, Relative humidity; <80%
Dimensions	285 L x 207 W x 180 mmH
Weight	3.8 kg
IP rating	IP31



---

주문정보

Drive	Pump head	Tubing	Flowrates(mL/min)	Weight(kg)
BT100-1F-B (05.02.13B)	YZ1515	13# 14# 19# 16# 25# 17# 18#	≤380	4.2
	YZ2515	15# 24#	≤267
	YZII15	13# 14# 19# 16# 25# 17# 18#	≤380
	YZII25	15# 24# 35# 36#	≤500
	DMD15-13	13# 14# 19# 16# 25#	≤350
	DG15-24	16# 25# 17#	≤300/channel	4.5

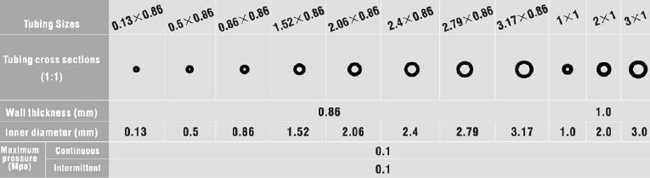

	DG15-28	internal diameter : ≤3.17 mm wall thickness : 0.8-1.0 mm	≤75/channel
	DG-1,2,4(6-rollers)		≤48/channel	4.0~4.2
	DG-1,2,4(10-rollers)		≤32/channel

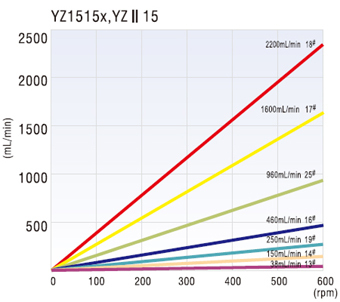

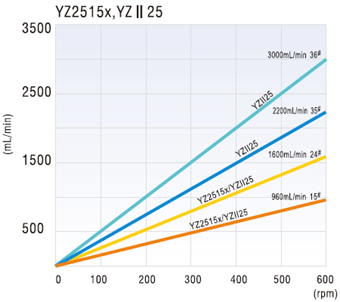

YZ1515x, YZ2515x





YZII15, YZII25

​





DMD15-13

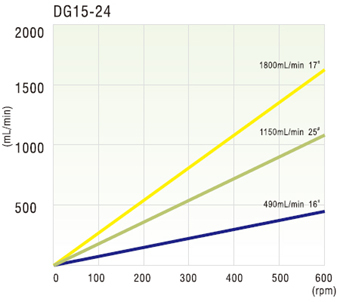

DG15-24

---

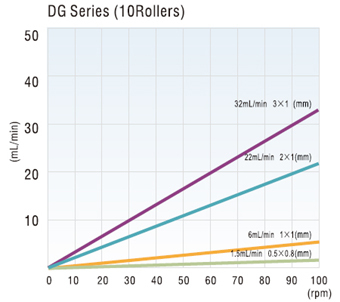

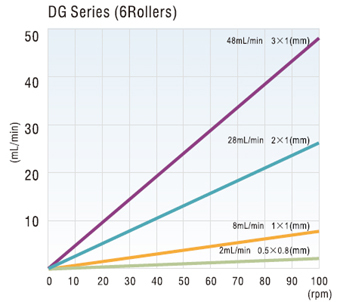

DG Series

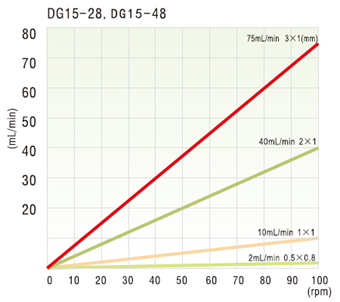

DG15-28/48

---



---
