LONGER
|
|
BT100-1L 유량조절형 튜브연동식 정밀 정량펌프
[BT100-1L Flowrate Peristaltic Pump]
128x32 LCD와 멤브레인 키패드 및 회전식 엔코더스위치, IP31
회전속도 : 0.1~100 rpm (0.1 rpm), 역회전, 높은회전력
유량범위 : 0.002~500 mL/min
펌프헤드 : YZ-15, YZ-25(최대 4 헤드 장착), DG-15, DG(최대 24 채널)
|
개요
- BT100-1L 유량조절형 튜브연동식 정밀 정량펌프는 강력한 회전력 토크(1.65 N.m.)를 가지고 있어서 여러개의 펌프헤드를 장착할 수 있다.
- 채널당 0.05 ~ 500 mL/min 범위에서 유량조절이 가능하다.
- 대형128 x 64 그래픽 LCD 디스플레이를 통해 간편하게 파리미터를 설정할 수 있으며, 작동 메뉴를 관찰할 수 있다.
- 유량과 회전속도를 동시에 같은 화면에 디스플레이할 수 있으며, 유량 검량기능을 가지고 있어서 더욱 정밀한 유량제어가 가능하다
- 표준 외부제어 인터페이스나 RS-485 통신 인터페이스를 통해 간편하게 원격제어할 수 있다.
특징
- Suitable for laboratory, analytical instrument, industry.
- Multi-channels peristaltic pump BT100-1L has graphic LCD, which could display the parameters and running state. Except the basic speed control function, the pump could also display the flow rate on the LCD and calibrate the flow rate with high accuracy. The high output torque could drive up to 24 channels. The pump provides flow rates from 0.002mL/min to 500 mL/min. The speed could be controlled through control panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily.
- Display can switch between flow rates and rpm
- Calibration capability for more accurate flow rate
- Graphic LCD together with rotary encoded switch makes it friendly and easy to use
- Higher torque to accept more pump heads and more channels
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements.
규격
Speed
|
0.1~100 rpm, CW/CCW
|
Speed resolution
|
0.1 rpm
|
Control mode
|
Control panel, external signal control and cmmunication control available
|
Speed control
|
Rotary coded switch coupled with membrane keypad
|
Display
|
128×64 graphic LCD displays current running status
|
Caibration function
|
Improve flow rate accuracy
|
External control
|
Start/stop, cw/ccw control
|
Direction and speed control
|
0 - 5V, 0 - 10V, and 4 - 20mA, external control module optiona
|
Communacation interface
|
RS485
|
Power-off memory
|
Return to previous state when power on
|
Prime
|
For fast filling and emptying at full speed
|
Power supply
|
AC220V±10%/50-60 Hz
|
Power consumption
|
≤50W
|
Operating condition
|
Temperature; 0~40℃, Relative humidity; <80%
|
Dimensions
|
202 L x 160 W x 239 mmH
|
Weight
|
5.3 kg
|
IP rating
|
IP31
|
주문정보
Drive
|
Pump head
|
Tubing
|
Flowrates(mL/min)
|
Weight(kg)
|
BT100-1L-A
(05.02.12A)
|
(1,2,3,4) x YZ1515
|
13# 14# 19# 16# 25# 17# 18#
|
≤380
|
5.7~6.9
|
(1,2,3,4) x YZ2515
|
15# 24#
|
≤270
|
5.7~6.9
|
|
(1,2,3,4) x YZII15
|
13# 14# 19# 16# 25# 17# 18#
|
≤380
|
5.7~6.9
|
|
(1,2,) x YZII25
|
15# 24# 35# 36#
|
≤500
|
5.7~6.9
|
|
(1,2,) x YZII25
|
15# 24# 35# 36#
|
≤500
|
5.7~6.1
|
|
(1,2,) x DMD15-13
|
13# 14# 19# 16# 25#
|
≤375
|
5.7~6.1
|
|
DG15-24
|
16# 25# 17#
|
≤300/channel
|
6.1
|
|
DG15-28
|
internal diameter : ≤3.17 mm. wall thickness : 0.8-1.0 mm
|
≤75/channel
|
5.9
|
|
DG15-48
|
≤75/channel
|
5.9
|
||
DG-1,2,4,6,8,12,16,24(6-rollers)
|
≤48/channel
|
5.7~8.6
|
||
DG-1,2,4,6,8,12,16,24(10-rollers)
|
≤32/channel
|
5.7~8.6
|

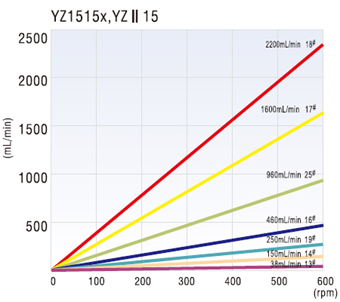

YZ1515x, YZ2515x
YZII15, YZII25

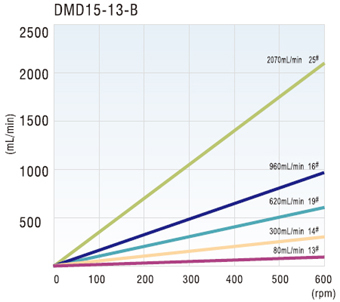

DMD15-13
DG15-24

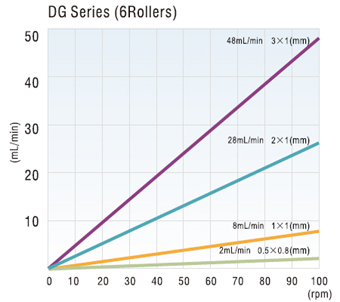

DG Series
